CS61C-lab4-RISCV汇编练习

发表于 分类于

前言·

为了更好的完成MIT6.S081的后续实验，花了一点时间学习了RISCV汇编。选择的资源为 伯克利CS61C课程，RISCV的介绍为Lec6到Lec9。本lab为RISCV的练习实验。

有用的资源推荐：

  1. CS61C 哔哩哔哩搬运
  2. CS61C-RISCV汇编参考card
  3. MIT-6.004-RISCV汇编参考card

本lab的要求为: 点这里

实验采用的模拟器为 venus

Exercise 1·

看如下代码，回答问题：

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
.data
.word 2, 4, 6, 8
n: .word 9

.text
main:   add     t0, x0, x0  # t0=0
        addi    t1, x0, 1   # t1=1
        la      t3, n       # t3 = n label address
        lw      t3, 0(t3)   # t3 = 9
fib:    beq     t3, x0, finish    # if t3 == 0 ? goto finish : next line
        add     t2, t1, t0  # t2 = t1 + t0
        mv      t0, t1      # t0 = t1
mv      t1, t2              # t1 = t2
        addi    t3, t3, -1  # t3--
        j       fib
finish: addi    a0, x0, 1   # a0 = 1
        addi    a1, t0, 0   # a1 = t0 = ?
        ecall # print integer ecall
        addi    a0, x0, 10  # call exit
        ecall # terminate ecall
  1. What do the .data, .word, .text directives mean (i.e. what do you use them for)? Hint: think about the 4 sections of memory.
  • .data 数据段
  • .word 定义数据占用一个word（4字节）
  • .text 代码段
  1. Run the program to completion. What number did the program output? What does this number represent?

output: 32 求解斐波那契数列中的第9项是多少

  1. At what address is n stored in memory? Hint: Look at the contents of the registers.

0x10000010

这里遗留问题：data段的起始位置是由谁决定的？

  1. Without actually editing the code (i.e. without going into the “Editor” tab), have the program calculate the 13th fib number (0-indexed) by manually modifying the value of a register. You may find it helpful to first step through the code. If you prefer to look at decimal values, change the “Display Settings” option at the bottom.

377 直接修改t3寄存器即可。

Exercise 2: Translating from C to RISC-V·

将如下C代码翻译成RISCV汇编：

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
int source[] = {3, 1, 4, 1, 5, 9, 0};
int dest[10];

int fun(int x) {
	return -x * (x + 1);
}

int main() {
    int k;
    int sum = 0;
    for (k = 0; source[k] != 0; k++) {
        dest[k] = fun(source[k]);
        sum += dest[k];
    }
    return sum;
}

汇编代码如下：

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
.data
source:
    .word   3
    .word   1
    .word   4
    .word   1
    .word   5
    .word   9
    .word   0
dest:
    .word   0
    .word   0
    .word   0
    .word   0
    .word   0
    .word   0
    .word   0
    .word   0
    .word   0
    .word   0

.text
main:
    addi t0, x0, 0  # t0 = 0
    addi s0, x0, 0  # s0 = 0
    la s1, source   # s1 = source address
    la s2, dest     # s2 = dest address
loop:
    slli s3, t0, 2  # s3 = t0 << 2  -> +4 字节
    add t1, s1, s3  # t1 = s1 + s3  : t1是source array element的指针
    lw t2, 0(t1)    # t2 = source[k]
    beq t2, x0, exit
    add a0, x0, t2  # a0 = t2
    addi sp, sp, -8
    sw t0, 0(sp)    # save t0
    sw t2, 4(sp)    # save t2, why we need to store t2?
    jal square
    lw t0, 0(sp)    # resotre t0
    lw t2, 4(sp)    # restore t2
    addi sp, sp, 8  # restore sp
    add t2, x0, a0  # t2 = a0 -> a0 <=> desk[k]
    add t3, s2, s3  # t3 指向当前引用的desk[k]地址
    sw t2, 0(t3)    # desk[k] = t2
    add s0, s0, t2  # s0 <==> sum
    addi t0, t0, 1  # k++
    jal x0, loop
square:
    add t0, a0, x0
    add t1, a0, x0
    addi t0, t0, 1
    addi t2, x0, -1
    mul t1, t1, t2
    mul a0, t0, t1
    jr ra
exit:
    add a0, x0, s0
    add a1, x0, x0
    ecall # Terminate ecall

  1. The register representing the variable k.

t0 寄存器

  1. The register representing the variable sum.

s0 寄存器

  1. The registers acting as pointers to the source and dest arrays.
  • source array pointer: t1
  • dest array pointer: t3
  1. How the pointers are manipulated in the assembly code.
  • 指针寻址，需要计算出实际的byte address。 而不像c中类似p操作，自动会计算一个 uint 的大小，如p是int类型指针，p 其实将p移动了4个字节（32位系统）
  • 可通过移位操作来完成p++,p–
  • 先计算要访问的element的地址，然后通过load或者store指令，加载或保存相应value

Exercise 3: Factorial·

实现阶乘函数，即求解n!

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
.globl factorial

.data
n: .word 8

.text
main:
    la t0, n
    lw a0, 0(t0)
    jal ra, factorial

    addi a1, a0, 0
    addi a0, x0, 1
    ecall # Print Result

    addi a1, x0, '\n'
    addi a0, x0, 11
    ecall # Print newline

    addi a0, x0, 10
    ecall # Exit

factorial:    #use recursion
    add t0, a0, x0  # t0 = param n
    addi t1, x0, 1  # t1 == 1
    bne t0, t1, other
    ret             # a0 is 1 now, so just return it. return 1 if n == 1
other:
    addi sp, sp, -8
    sw ra, 4(sp)    # save ra address
    sw t0, 0(sp)
    addi a0, a0,-1  # construct n-1
    jal factorial
    lw t0, 0(sp)    # restore t0, which is n
    lw ra, 4(sp)
    mul a0, t0, a0  # calc the final ans
    addi sp, sp, 8
    ret

Exercise 4: RISC-V function calling with map·

假设有如下结构体定义：

1
2
3
4
struct node {
    int value;
    struct node *next;
};

实现map函数，

1
2
3
4
5
6
void map(struct node *head, int (*f)(int))
{
    if(!head) { return; }
    head->value = f(head->value);
    map(head->next,f);
}

即对每个链表节点都apply一次f函数。

注释给的非常清晰，很好实现。

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
.globl map

.text
main:
    jal ra, create_default_list
    add s0, a0, x0  # a0 = s0 is head of node list

    #print the list
    add a0, s0, x0
    jal ra, print_list

    # print a newline
    jal ra, print_newline

    # load your args
    add a0, s0, x0  # load the address of the first node into a0

    # load the address of the function in question into a1 (check out la on the green sheet)
    la a1, square

    # issue the call to map
    jal ra, map

    # print the list
    add a0, s0, x0
    jal ra, print_list

    # print another newline
    jal ra, print_newline

    addi a0, x0, 10
    ecall #Terminate the program

map:
    # Prologue: Make space on the stack and back-up registers
    # backup ra, s0
    ### YOUR CODE HERE ###
    addi sp, sp, -8
    sw ra, 4(sp)
    sw s0, 0(sp)

    beq a0, x0, done    # If we were given a null pointer (address 0), we're done.

    add s0, a0, x0  # Save address of this node in s0
    add s1, a1, x0  # Save address of function in s1

    # Remember that each node is 8 bytes long: 4 for the value followed by 4 for the pointer to next.
    # What does this tell you about how you access the value and how you access the pointer to next?

    # load the value of the current node into a0
    # THINK: why a0?
    ### YOUR CODE HERE ###
    lw a0, 0(s0)

    # Call the function in question on that value. DO NOT use a label (be prepared to answer why).
    # What function? Recall the parameters of "map"
    ### YOUR CODE HERE ###
    jalr s1   # jump to f(head->value)

    # store the returned value back into the node
    # Where can you assume the returned value is?
    ### YOUR CODE HERE ###
    sw a0, 0(s0)

    # Load the address of the next node into a0
    # The Address of the next node is an attribute of the current node.
    # Think about how structs are organized in memory.
    ### YOUR CODE HERE ###
    lw a0, 4(s0)

    # Put the address of the function back into a1 to prepare for the recursion
    # THINK: why a1? What about a0?
    ### YOUR CODE HERE ###
    mv a1, s1

    # recurse
    ### YOUR CODE HERE ###
    jal map

done:
    # Epilogue: Restore register values and free space from the stack
    ### YOUR CODE HERE ###
    lw s0, 0(sp)
    lw ra, 4(sp)
    addi sp, sp, 8
    jr ra # Return to caller

square:
    mul a0 ,a0, a0
    jr ra

create_default_list:
    addi sp, sp, -12
    sw  ra, 0(sp)
    sw  s0, 4(sp)
    sw  s1, 8(sp)
    li  s0, 0       # pointer to the last node we handled
    li  s1, 0       # number of nodes handled
loop:   #do...
    li  a0, 8
    jal ra, malloc      # get memory for the next node
    sw  s1, 0(a0)   # node->value = i
    sw  s0, 4(a0)   # node->next = last
    add s0, a0, x0  # last = node
    addi    s1, s1, 1   # i++
    addi t0, x0, 10
    bne s1, t0, loop    # ... while i!= 10
    lw  ra, 0(sp)
    lw  s0, 4(sp)
    lw  s1, 8(sp)
    addi sp, sp, 12
    jr ra

print_list:
    bne a0, x0, printMeAndRecurse
    jr ra       # nothing to print
printMeAndRecurse:
    add t0, a0, x0  # t0 gets current node address
    lw  a1, 0(t0)   # a1 gets value in current node
    addi a0, x0, 1      # prepare for print integer ecall
    ecall
    addi    a1, x0, ' '     # a0 gets address of string containing space
    addi    a0, x0, 11      # prepare for print string syscall
    ecall
    lw  a0, 4(t0)   # a0 gets address of next node
    jal x0, print_list  # recurse. We don't have to use jal because we already have where we want to return to in ra

print_newline:
    addi    a1, x0, '\n' # Load in ascii code for newline
    addi    a0, x0, 11
    ecall
    jr  ra

malloc:
    addi    a1, a0, 0
    addi    a0, x0 9
    ecall
    jr  ra

**这里的考点主要是考虑哪些寄存器需要保存，什么时候保存，是什么时候恢复。**参考lec07即可。

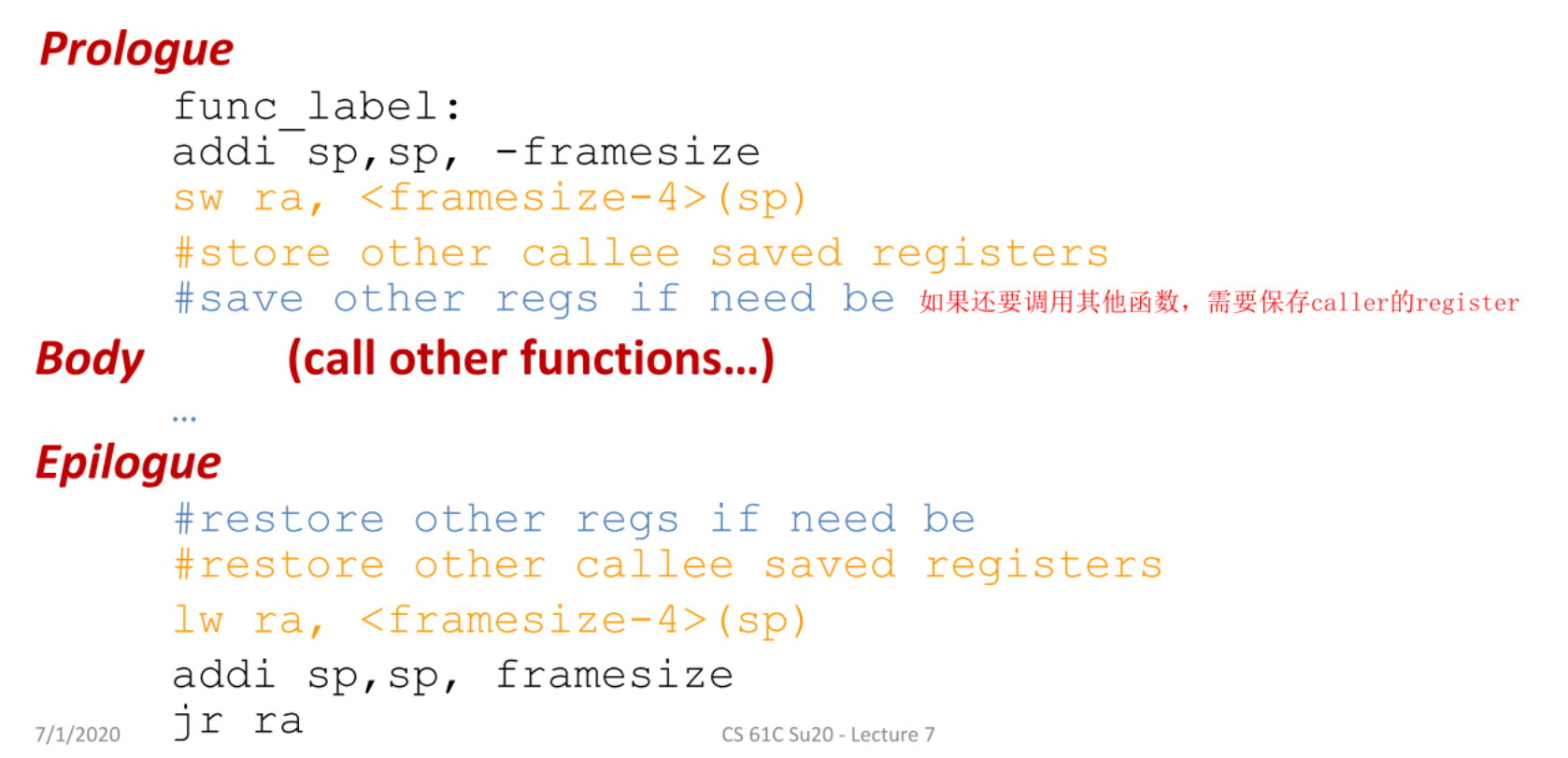

课堂上给出的一个基础结构为：

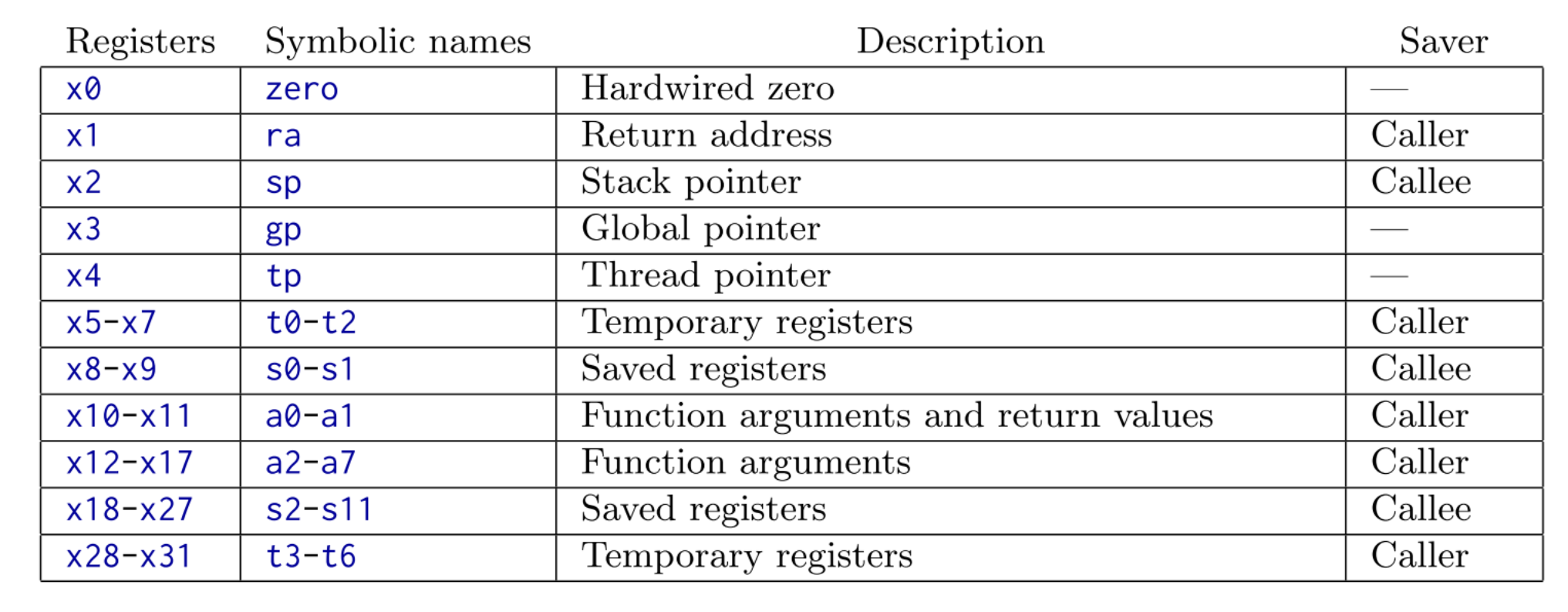

我们知道riscv中一共有32个寄存器，如下：

其中的Saver列指明了我们在哪里需要保存些什么寄存器，比如 s开头一系列寄存器和sp需要在callee中保存，而 t开头的寄存器和ra需要在caller中保存。保持这种 calling convention是非常重要的，能够得到更好的可读的汇编，而不是滥用各类寄存器，到头备受折磨。
