muduo源码3-Acceptor(新建连接) & Socket

发表于 分类于

📌本文采用wolai制作， link

1 回顾socket接口·

在分析muduo源码前，简单回顾下linux下的网络编程接口，这里用下csapp的slide:

image-2020083117322399|550

这里解释下一些关键接口的含义:

  • socket: 用于创建一个socket descriptor（就像open返回一个fd一样)
  • bind: 将ip地址绑定到socket
    1
    int bind(int socket, const struct sockaddr *address, socklen_t address_len);
  • listen: 将一个socket从 active socket转换为 listening socket
    1
    2
    int listen(int socket, int backlog);

    默认情况下，创建的socket叫做active socket，这种socket只能用在client端。 通过listen调用，将其转换为listening socket，这种socket可以接收来自client的请求，用于server端。
  • accept: server端用于等待client端的连接函数，连接信息放在address中。
    1
    2
    3
    int accept(int socket, struct sockaddr * address,
               socklen_t * address_len);

  • connect: client端发起连接
    1
    int connect(int socket, const struct sockaddr *address, socklen_t address_len);

2 Acceptor源码·

Acceptor 用于处理新连接，正如官方注释写的:

1
2
3
4
///
/// Acceptor of incoming TCP connections.
///

对外提供的接口有:

1
2
3
4
5
6
7
8
9
10
Acceptor(EventLoop* loop, const InetAddress& listenAddr, bool reuseport);
~Acceptor();

void setNewConnectionCallback(const NewConnectionCallback& cb)
{ newConnectionCallback_ = cb; }

void listen();

bool listening() const { return listening_; }

包含一个处理链接的回调，和一个listen监听接口。

主要成员包括:

1
2
3
4
5
6
EventLoop* loop_;
Socket acceptSocket_;
Channel acceptChannel_;
 NewConnectionCallback newConnectionCallback_;
bool listening_;
int idleFd_;

先看构造函数:

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
Acceptor::Acceptor(EventLoop* loop, const InetAddress& listenAddr, bool reuseport)
  : loop_(loop),
     acceptSocket_(sockets::createNonblockingOrDie(listenAddr.family())),
    acceptChannel_(loop, acceptSocket_.fd()),
     listening_(false),
    idleFd_(::open("/dev/null", O_RDONLY | O_CLOEXEC))
{
  assert(idleFd_ >= 0);
   acceptSocket_.setReuseAddr(true);
  acceptSocket_.setReusePort(reuseport);
  acceptSocket_.bindAddress(listenAddr);
   acceptChannel_.setReadCallback(
      std::bind(&Acceptor::handleRead, this));
}


acceptSocket_ 是muduo关于socket的封装。 关于socket的细节下文再说。本节重点关于Acceptor的逻辑即可。

channel已经在muduo源码分析1-事件循环(上)中分析过。

额外关注的是 acceptor开启了ReusePort.

打开看acceptSocket_ 的Reuse相关实现：

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
void Socket::setReuseAddr(bool on)
{
  int optval = on ? 1 : 0;
  ::setsockopt(sockfd_, SOL_SOCKET,  SO_REUSEADDR ,
               &optval, static_cast<socklen_t>(sizeof optval));
  // FIXME CHECK
}


void Socket::setReusePort(bool on)
{
#ifdef SO_REUSEPORT
  int optval = on ? 1 : 0;
  int ret = ::setsockopt(sockfd_, SOL_SOCKET,  SO_REUSEPORT ,
                         &optval, static_cast<socklen_t>(sizeof optval));
  if (ret < 0 && on)
  {
    LOG_SYSERR << "SO_REUSEPORT failed.";
  }
#else
  if (on)
  {
    LOG_ERROR << "SO_REUSEPORT is not supported.";
  }
#endif
}



重点参数是两个flag：

  • SO_REUSEADDR选项允许在TCP连接中，立即重用处于TIME_WAIT状态的端口。这在服务器程序需要频繁重启时特别有用，因为它避免了必须等待旧连接完全关闭才能重新绑定端口的问题。
  • SO_REUSEPORT选项允许多个套接字绑定到同一个IP地址和端口。这对于实现负载均衡非常有用，因为可以创建多个监听套接字，每个监听套接字可以在不同的线程或进程中处理请求，从而提高并发处理能力。

这里提到了 TIME_WAIT, 所以再说下TCP的四次回收断开连接过程。如下图：

可以看到每个主动发起close的一端，在最后总会进入TIME_WAIT状态，等待2MSL时间才能真正断开，在此期间，原链接的ip+port 组是不能被复用的，对于高并发多连接的场景，是不可接受的，所以SO_REUSEADDR的作用就是对于处于这个状态的连接，可以重用。

回到Acceptor。 Acceptor 还提供了listen函数, 其caller为

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
void TcpServer::start()
{
  if (started_.getAndSet(1) == 0)
  {
    threadPool_->start(threadInitCallback_);

    assert(!acceptor_->listening());
    loop_->runInLoop(
         std::bind(&Acceptor::listen, get_pointer(acceptor_) ));
  }
}

void Acceptor::listen()
{
  loop_->assertInLoopThread();
  listening_ = true;
  acceptSocket_.listen();
  acceptChannel_.enableReading(); // 注册read事件监听，这样accept sockfd上有read事件即会回调 std::bind(&Acceptor:: handleRead , this)
}


再看 handleRead

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
void Acceptor::handleRead()
{
  loop_->assertInLoopThread();
  InetAddress peerAddr;
  //FIXME loop until no more
   int connfd = acceptSocket_.accept(&peerAddr); // 创建新连接
   if (connfd >= 0)
  {
    // string hostport = peerAddr.toIpPort();
    // LOG_TRACE << "Accepts of " << hostport;
    if (newConnectionCallback_)
    {
       newConnectionCallback_(connfd, peerAddr);  // 回调给caller
     }
    else
    {
      sockets::close(connfd);
    }
  }

}

newConnectionCallback_ 哪来的？在TcpServer构造函数中注册进来的:

1
2
3
4
5
6
7
8
9
10
11
TcpServer::TcpServer(EventLoop* loop,
                     const InetAddress& listenAddr,
                     const string& nameArg,
                     Option option)
  : ...
{
   acceptor_->setNewConnectionCallback(
      std::bind(&TcpServer::newConnection, this, _1, _2));
}


newConnection 函数已经在muduo源码分析1-事件循环(上)和muduo源码分析2-事件循环（下)都提到了, 这里再提一下：

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
void TcpServer::newConnection(int sockfd, const InetAddress& peerAddr)
{
  loop_->assertInLoopThread();
  EventLoop* ioLoop = threadPool_->getNextLoop();
  char buf[64];
  snprintf(buf, sizeof buf, "-%s#%d", ipPort_.c_str(), nextConnId_);
  ++nextConnId_;
  string connName = name_ + buf;

  LOG_INFO << "TcpServer::newConnection [" << name_
           << "] - new connection [" << connName
           << "] from " << peerAddr.toIpPort();
  InetAddress localAddr(sockets::getLocalAddr(sockfd));
  // FIXME poll with zero timeout to double confirm the new connection
  // FIXME use make_shared if necessary
   TcpConnectionPtr conn(new TcpConnection(ioLoop,
                                          connName,
                                          sockfd,
                                          localAddr,
                                          peerAddr));
   connections_[connName] = conn;
  conn->setConnectionCallback(connectionCallback_);
  conn->setMessageCallback(messageCallback_);
  conn->setWriteCompleteCallback(writeCompleteCallback_);
  conn->setCloseCallback(
      std::bind(&TcpServer::removeConnection, this, _1)); // FIXME: unsafe
   ioLoop->runInLoop(std::bind(&TcpConnection::connectEstablished, conn));
 }

拿到sockfd后，创建TcpConnection对象，内部生成channel，后面关于这个连接的读写，都通过channel来监听，一旦出现读写事件，又会回调这里的 messageCallback_和 writeCompleteCallback_回调。 同时，当出现新建连接时，还会进入 connectEstablished:

1
2
3
4
5
6
7
8
9
10
11
12
void TcpConnection::connectEstablished()
{
  loop_->assertInLoopThread();
  assert(state_ == kConnecting);
  setState(kConnected);
  channel_->tie(shared_from_this());
  channel_->enableReading();

   connectionCallback_(shared_from_this());
 }


这里的connectionCallback_就是最外层应用层逐层传递下来的，以HtppServer为例:

1
2
3
4
5
6
7
8
9
10
11
12
13
14
HttpServer::HttpServer(EventLoop* loop,
                       const InetAddress& listenAddr,
                       const string& name,
                       TcpServer::Option option)
  : server_(loop, listenAddr, name, option),
    httpCallback_(detail::defaultHttpCallback)
{
   server_.setConnectionCallback(
      std::bind(&HttpServer::onConnection, this, _1));
  server_.setMessageCallback(
      std::bind(&HttpServer::onMessage, this, _1, _2, _3));
}

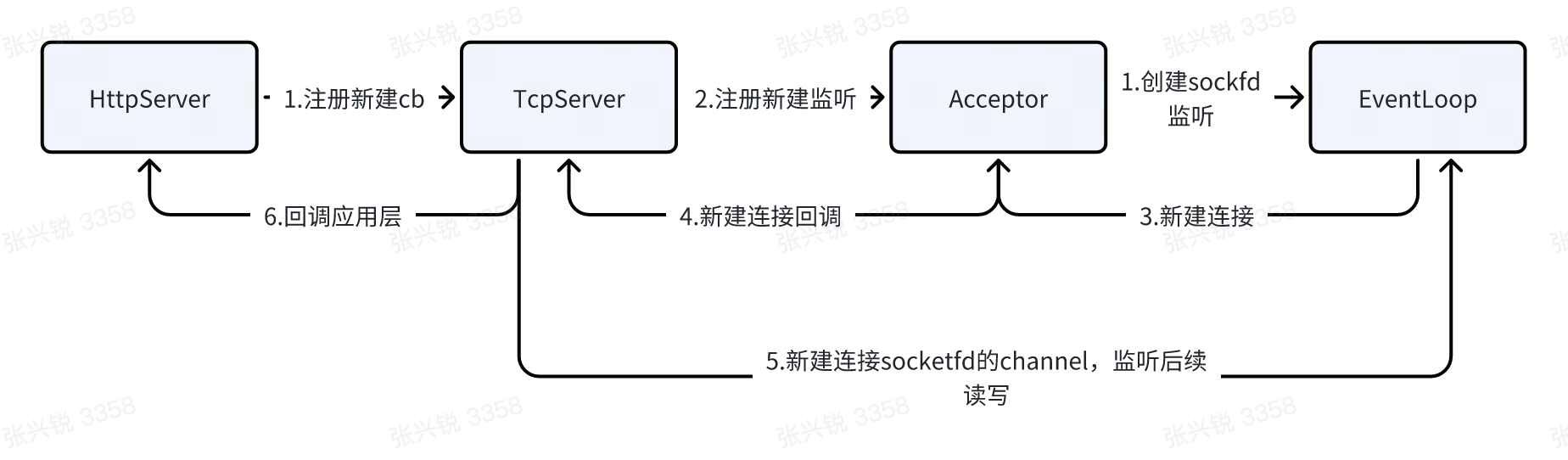

2.1 一图串起来·

现在我们完全了解了 **创建一个新连接 **是怎么玩的了，画个图来总结。

3 Socket·

这个类是对底层socket 接口的wrap， 其实没什么好说的，贴下源码吧。

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
///
/// Wrapper of socket file descriptor.
///
/// It closes the sockfd when desctructs.
/// It's thread safe, all operations are delagated to OS.
class Socket : noncopyable
{
 public:
  explicit Socket(int sockfd)
    : sockfd_(sockfd)
  { }

  // Socket(Socket&&) // move constructor in C++11
  ~Socket();

  int fd() const { return sockfd_; }
  // return true if success.
  bool getTcpInfo(struct tcp_info*) const;
  bool getTcpInfoString(char* buf, int len) const;

  /// abort if address in use
  void bindAddress(const InetAddress& localaddr);
  /// abort if address in use
  void listen();

  /// On success, returns a non-negative integer that is
  /// a descriptor for the accepted socket, which has been
  /// set to non-blocking and close-on-exec. *peeraddr is assigned.
  /// On error, -1 is returned, and *peeraddr is untouched.
  int accept(InetAddress* peeraddr);

  void shutdownWrite();

  ///
  /// Enable/disable TCP_NODELAY (disable/enable Nagle's algorithm).
  ///
  void setTcpNoDelay(bool on);

  ///
  /// Enable/disable SO_REUSEADDR
  ///
  void setReuseAddr(bool on);

  ///
  /// Enable/disable SO_REUSEPORT
  ///
  void setReusePort(bool on);

  ///
  /// Enable/disable SO_KEEPALIVE
  ///
  void setKeepAlive(bool on);

 private:
  const int sockfd_;
};


Socket::~Socket()
{
  sockets::close(sockfd_);
}

bool Socket::getTcpInfo(struct tcp_info* tcpi) const
{
  socklen_t len = sizeof(*tcpi);
  memZero(tcpi, len);
  return ::getsockopt(sockfd_, SOL_TCP, TCP_INFO, tcpi, &len) == 0;
}

bool Socket::getTcpInfoString(char* buf, int len) const
{
  struct tcp_info tcpi;
  bool ok = getTcpInfo(&tcpi);
  if (ok)
  {
    snprintf(buf, len, "unrecovered=%u "
             "rto=%u ato=%u snd_mss=%u rcv_mss=%u "
             "lost=%u retrans=%u rtt=%u rttvar=%u "
             "sshthresh=%u cwnd=%u total_retrans=%u",
             tcpi.tcpi_retransmits,  // Number of unrecovered [RTO] timeouts
             tcpi.tcpi_rto,          // Retransmit timeout in usec
             tcpi.tcpi_ato,          // Predicted tick of soft clock in usec
             tcpi.tcpi_snd_mss,
             tcpi.tcpi_rcv_mss,
             tcpi.tcpi_lost,         // Lost packets
             tcpi.tcpi_retrans,      // Retransmitted packets out
             tcpi.tcpi_rtt,          // Smoothed round trip time in usec
             tcpi.tcpi_rttvar,       // Medium deviation
             tcpi.tcpi_snd_ssthresh,
             tcpi.tcpi_snd_cwnd,
             tcpi.tcpi_total_retrans);  // Total retransmits for entire connection
  }
  return ok;
}

void Socket::bindAddress(const InetAddress& addr)
{
  sockets::bindOrDie(sockfd_, addr.getSockAddr());
}

void Socket::listen()
{
  sockets::listenOrDie(sockfd_);
}

int Socket::accept(InetAddress* peeraddr)
{
  struct sockaddr_in6 addr;
  memZero(&addr, sizeof addr);
  int connfd = sockets::accept(sockfd_, &addr);
  if (connfd >= 0)
  {
    peeraddr->setSockAddrInet6(addr);
  }
  return connfd;
}

void Socket::shutdownWrite()
{
  sockets::shutdownWrite(sockfd_);
}

void Socket::setTcpNoDelay(bool on)
{
  int optval = on ? 1 : 0;
  ::setsockopt(sockfd_, IPPROTO_TCP, TCP_NODELAY,
               &optval, static_cast<socklen_t>(sizeof optval));
  // FIXME CHECK
}

void Socket::setReuseAddr(bool on)
{
  int optval = on ? 1 : 0;
  ::setsockopt(sockfd_, SOL_SOCKET, SO_REUSEADDR,
               &optval, static_cast<socklen_t>(sizeof optval));
  // FIXME CHECK
}

void Socket::setReusePort(bool on)
{
#ifdef SO_REUSEPORT
  int optval = on ? 1 : 0;
  int ret = ::setsockopt(sockfd_, SOL_SOCKET, SO_REUSEPORT,
                         &optval, static_cast<socklen_t>(sizeof optval));
  if (ret < 0 && on)
  {
    LOG_SYSERR << "SO_REUSEPORT failed.";
  }
#else
  if (on)
  {
    LOG_ERROR << "SO_REUSEPORT is not supported.";
  }
#endif
}

void Socket::setKeepAlive(bool on)
{
  int optval = on ? 1 : 0;
  ::setsockopt(sockfd_, SOL_SOCKET, SO_KEEPALIVE,
               &optval, static_cast<socklen_t>(sizeof optval));
  // FIXME CHECK
}


文章对你有帮助?打赏一下作者吧
