For Phase 1, you will not inject new code. Instead, your exploit string will redirect the program to execute an existing procedure. Function getbuf is called within CTARGET by a function test having the following C code:
1 2 3 4 5 6 7
voidtest() { int val; val = getbuf(); printf("No exploit. Getbuf returned 0x%x\n", val); }

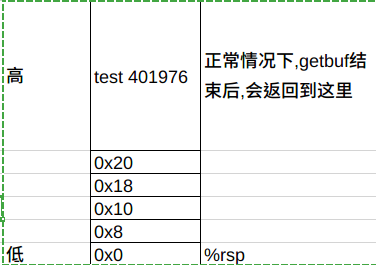

When getbuf executes its return statement (line 5 of getbuf), the program ordinarily resumes execution within function test (at line 5 of this function). We want to change this behavior. Within the file ctarget, there is code for a function touch1 having the following C representation:
1 2 3 4 5 6 7 8
voidtouch1() { vlevel = 1; /* Part of validation protocol */ printf("Touch1!: You called touch1()\n"); validate(1); exit(0); }
Your task is to get CTARGET to execute the code for touch1 when getbuf executes its return statement, rather than returning to test. Note that your exploit string may also corrupt parts of the stack not directly related to this stage, but this will not cause a problem, since touch1 causes the program to exit directly.
Phase 2 involves injecting a small amount of code as part of your exploit string. Within the file ctarget there is code for a function touch2 having the following C representation:
1 2 3 4 5 6 7 8 9 10 11 12 13
voidtouch2(unsigned val) { vlevel = 2; /* Part of validation protocol */ if (val == cookie) { printf("Touch2!: You called touch2(0x%.8x)\n", val); validate(2); } else { printf("Misfire: You called touch2(0x%.8x)\n", val); fail(2); } exit(0); }

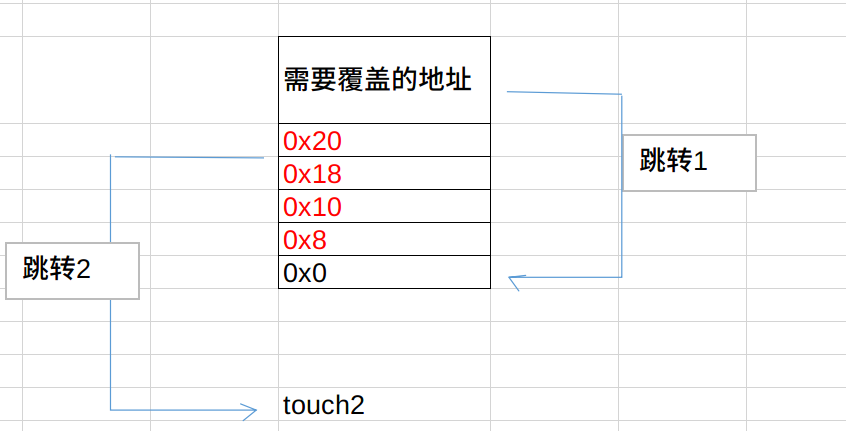

Your task is to get CTARGET to execute the code for touch2 rather than returning to test. In this case, however, you must make it appear to touch2 as if you have passed your cookie as its argument.
Phase 3 also involves a code injection attack, but passing a string as argument. Within the file ctarget there is code for functions hexmatch and touch3 having the following C representations:
/* Compare string to hex represention of unsigned value */ inthexmatch(unsigned val, char *sval) { char cbuf[110]; /* Make position of check string unpredictable */ char *s = cbuf + random() % 100; sprintf(s, "%.8x", val); returnstrncmp(sval, s, 9) == 0; }
voidtouch3(char *sval) { vlevel = 3; /* Part of validation protocol */ if (hexmatch(cookie,sval)) { printf("Touch3!: You called touch3(\"%s\")\n", sval); validate(3); } else { printf("Misfire: You called touch3(\"%s\")\n", sval); fail(3); } exit(0); }

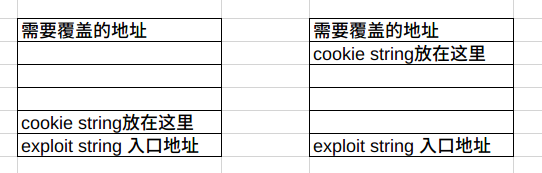

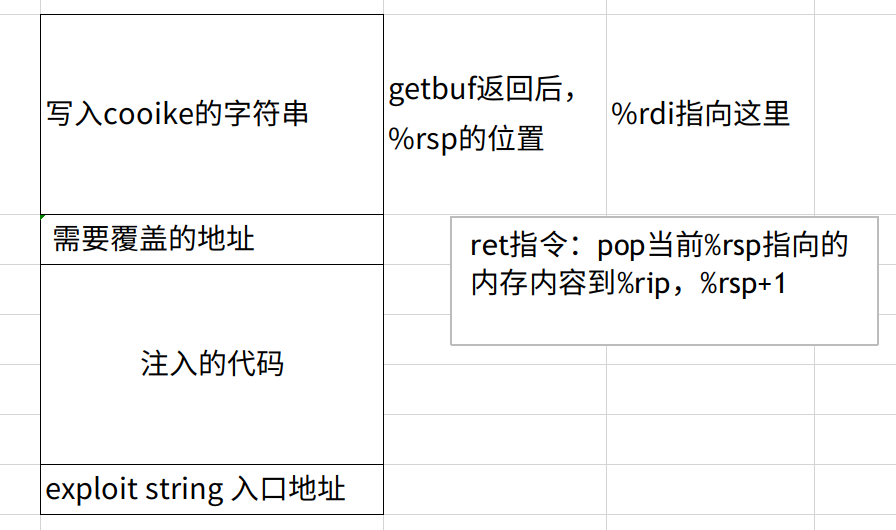

Your task is to get CTARGET to execute the code for touch3 rather than returning to test. You must make it appear to touch3 as if you have passed a string representation of your cookie as its argument.

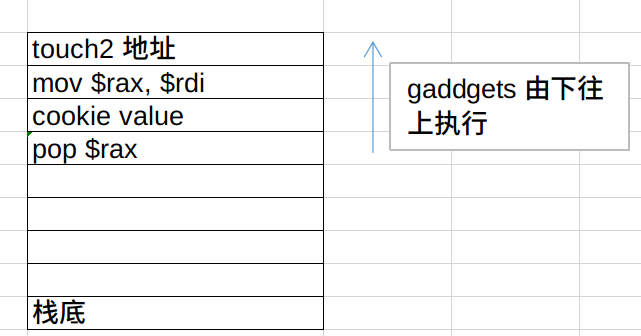

For Phase 4, you will repeat the attack of Phase 2, but do so on program RTARGET using gadgets from your gadget farm. You can construct your solution using gadgets consisting of the following instruction types, and using only the first eight x86-64 registers (%rax–%rdi).

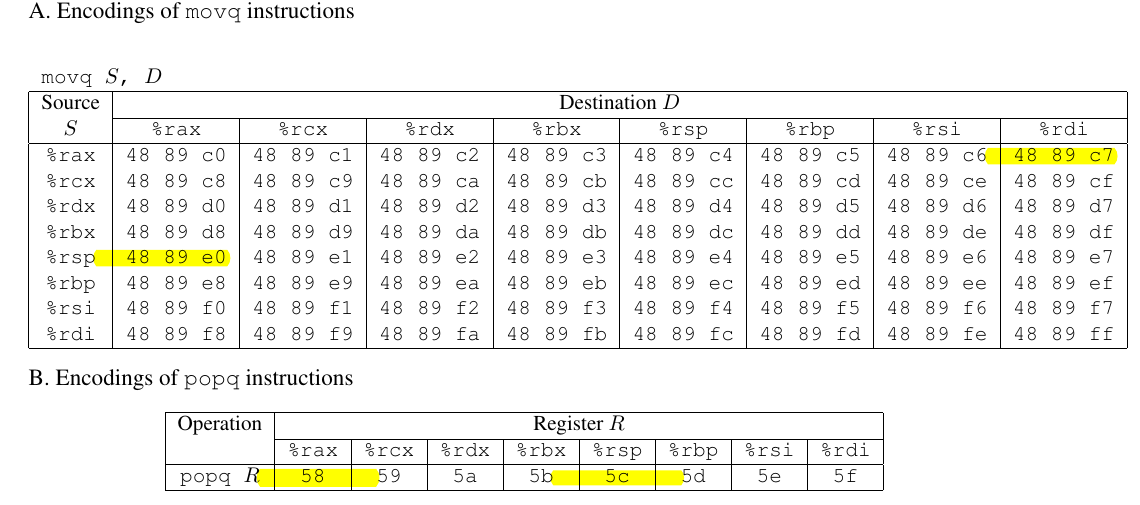

movq : The codes for these are shown in Figure 3A.
popq : The codes for these are shown in Figure 3B.
ret : This instruction is encoded by the single byte 0xc3.
nop : This instruction (pronounced “no op,” which is short for “no operation”) is encoded by the single
byte 0x90. Its only effect is to cause the program counter to be incremented by 1.
Phase 5 requires you to do an ROP attack on RTARGET to invoke function touch3 with a pointer to a string epresentation of your cookie. That may not seem significantly more difficult than using an ROP attack to invoke touch2, except that we have made it so. Moreover, Phase 5 counts for only 5 points, which is not a true measure of the effort it will require. Think of it as more an extra credit problem for those who want to go beyond the normal expectations for the course.

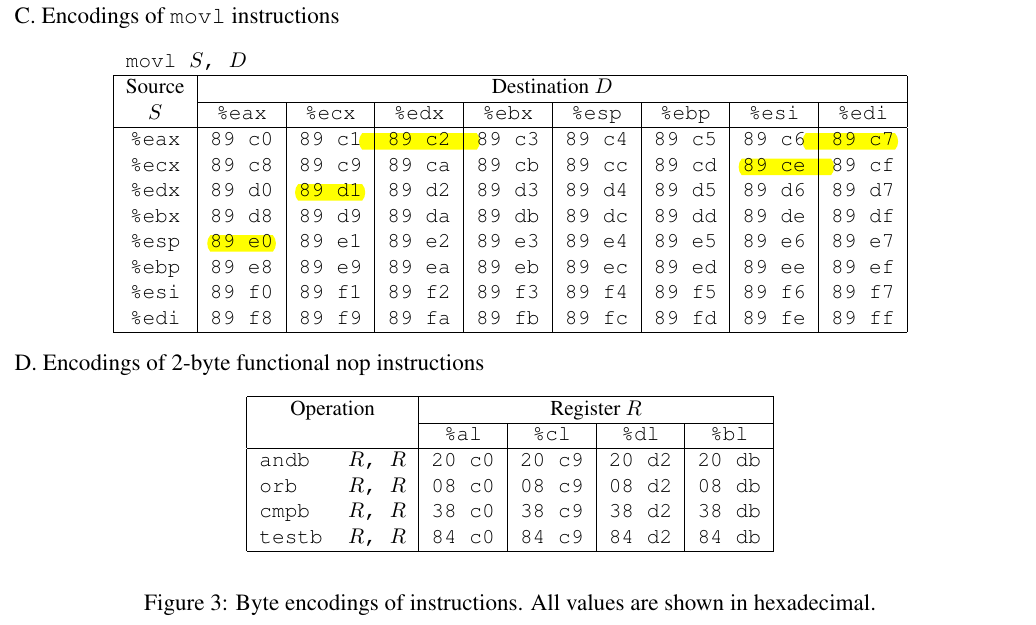

To solve Phase 5, you can use gadgets in the region of the code in rtarget demarcated by functions start_farm and end_farm. In addition to the gadgets used in Phase 4, this expanded farm includes the encodings of different movl instructions, as shown in Figure 3C. The byte sequences in this part of the farm also contain 2-byte instructions that serve as functional nops, i.e., they do not change any register or memory values. These include instructions, shown in Figure 3D, such as andb %al,%al, that operate on the low-order bytes of some of the registers but do not change their values.
